百度Echarts+JQuery 一页多图动态加载实现(可拆分)

大概的发一下一页多图的加载方法，可以拆分，可以合并。动态取数据显示。

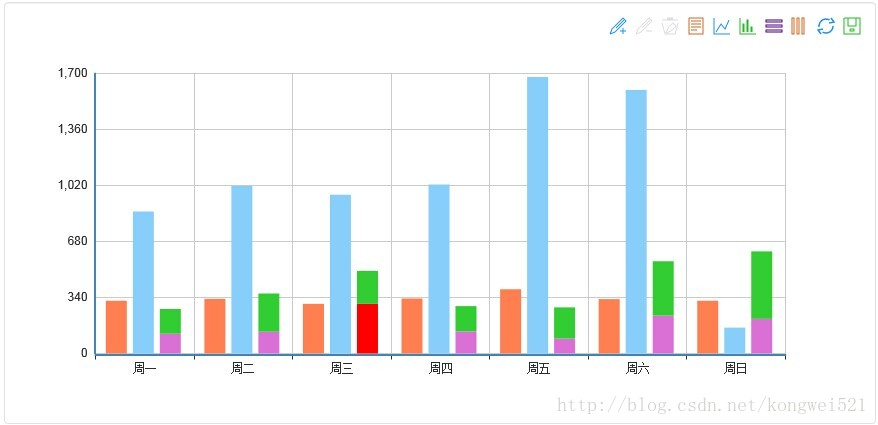

效果图如下：

JS引用代码;

    <link href="assets/css/echartsHome.css" rel="stylesheet">
    <script src="assets/js/esl.js"></script>
    <script src="assets/js/codemirror.js"></script>

 <div id="maincharts" class="main" style="width:850px;"></div>
 <div id="chartArea2" class="main" style="width:850px;"></div>

   <script src="assets/js/jquery-1.8.2.min.js"></script>
   <script src="assets/js/echarts-map.js"></script>

JS实现代码：

	<script type="text/javascript">
		  	 function needMap() {
		  	 	 var href = location.href;
		  	 	 return href.indexOf("map") != -1
						|| href.indexOf("mix3") != -1
						|| href.indexOf("mix5") != -1
						|| href.indexOf("dataRange") != -1;

		  	 }

		  	 var fileLocation = needMap() ? "assets/js/echarts-map" : "assets/js/echarts";
		  	 require.config({
		  	 	 paths: {
		  	 	 	 echarts: fileLocation,
		  	 	 	 "echarts/assets/js/pie": fileLocation,
		  	 	 	 "echarts/assets/js/map": fileLocation,
		  	 	 }
		  	 });

		  	 require(
						[
							"echarts",
							"echarts/chart/pie",
							needMap() ? "echarts/chart/map" : "echarts"
						],

					 DrawCharts
			    );
		  	 function DrawCharts(ec) {

		  	 	 DrawMapPieCharts(ec);
		  	 	 DrawBarCharts(ec);
		  	 }
		  	 function DrawMapPieCharts(ec) {
		  	 	 //--- 柱状图 ---
		  	 	 var myChart = ec.init(document.getElementById("maincharts"));

		  	 	 myChart.showLoading({
		  	 	 	 text: "正在加载中...请稍后"
		  	 	 });
		  	 	 myChart.hideLoading();
		  	 	 myChart.setOption({
		  	 	 	 title: {
		  	 	 	 	 text: "2014全国每月销售量（单）",
		  	 	 	 	 subtext: "数据来自WMS统计"
		  	 	 	 },
		  	 	 	 tooltip: {
		  	 	 	 	 trigger: "item"
		  	 	 	 },
		  	 	 	 legend: {
		  	 	 	 	 x: "right",
		  	 	 	 	 selectedMode: false,
		  	 	 	 	 data: ["山东", "上海", "广东", "江苏"]
		  	 	 	 },
		  	 	 	 dataRange: {
		  	 	 	 	 orient: "horizontal",
		  	 	 	 	 min: 0,
		  	 	 	 	 max: 55000,
		  	 	 	 	 text: ["购买力强", "低"],           // 文本，默认为数值文本
		  	 	 	 	 splitNumber: 0
		  	 	 	 },
		  	 	 	 toolbox: {
		  	 	 	 	 show: true,
		  	 	 	 	 orient: "vertical",
		  	 	 	 	 x: "right",
		  	 	 	 	 y: "center",
		  	 	 	 	 feature: {
		  	 	 	 	 	 mark: { show: true },
		  	 	 	 	 	 dataView: { show: true, readOnly: false }
		  	 	 	 	 }
		  	 	 	 },
		  	 	 	 series: [
					 {
					 	 name: "2014全国每月订单销售量",
					 	 type: "map",
					 	 mapType: "china",
					 	 mapLocation: {
					 	 	 x: "left"
					 	 },
					 	 selectedMode: "multiple",
					 	 itemStyle: {
					 	 	 normal: { label: { show: true } },
					 	 	 emphasis: { label: { show: true } }
					 	 },
					 	 data: [
                         { name: "西藏", value: 605.83 },
                         { name: "青海", value: 1670.44 },
                         { name: "宁夏", value: 2102.21 },
                         { name: "海南", value: 2522.66 },
                         { name: "甘肃", value: 5020.37 },
                         { name: "贵州", value: 5701.84 },
                         { name: "新疆", value: 6610.05 },
                         { name: "云南", value: 8893.12 },
                         { name: "重庆", value: 10011.37 },
                         { name: "吉林", value: 10568.83 },
                         { name: "山西", value: 11237.55 },
                         { name: "天津", value: 11307.28 },
                         { name: "江西", value: 11702.82 },
                         { name: "广西", value: 11720.87 },
                         { name: "陕西", value: 12512.3 },
                         { name: "黑龙江", value: 12582 },
                         { name: "内蒙古", value: 14359.88 },
                         { name: "安徽", value: 15300.65 },
                         { name: "北京", value: 16251.93 },
                         { name: "福建", value: 17560.18 },
                         { name: "上海", value: 19195.69 },
                         { name: "湖北", value: 19632.26 },
                         { name: "湖南", value: 19669.56 },
                         { name: "四川", value: 21026.68 },
                         { name: "辽宁", value: 22226.7 },
                         { name: "河北", value: 24515.76 },
                         { name: "河南", value: 26931.03 },
                         { name: "浙江", value: 32318.85 },
                         { name: "山东", value: 45361.85 },
                         { name: "江苏", value: 49110.27 },
                         { name: "广东", value: 53210.28 }
					 	 ]
					 }
					 ,
					 {
					 	 name: "2014全国每月订单销售量",
					 	 type: "pie",
					 	 roseType: "area",
					 	 tooltip: {
					 	 	 trigger: "item",
					 	 	 formatter: "{a} <br/>{b} : {c} ({d}%)"
					 	 },
					 	 center: [document.getElementById("maincharts").offsetWidth - 250, 225],
					 	 radius: [30, 120],
					 	 data: [
                         { name: "山东", value: 26251.93 },
                         { name: "上海", value: 19195.69 },
                         { name: "广东", value: 33210.28 },{ name: "江苏", value: 23210.28 }
					 	 ]
					 }
		  	 	 	 ],
		  	 	 	 animation: false

		  	 	 });
		  	 }

		  	 function DrawBarCharts(ec) {
		  	 	 //--- 柱状图 ---
		  	 	 var myChart = ec.init(document.getElementById("chartArea2"));
		  	 	 myChart.showLoading({
		  	 	 	 text: "正在加载中...请稍后"
		  	 	 });
		  	 	 myChart.hideLoading();
		  	 	 myChart.setOption({

		  	 	 	 tooltip: {
		  	 	 	 	 trigger: "axis"
		  	 	 	 },
		  	 	 	 toolbox: {
		  	 	 	 	 show: true,
		  	 	 	 	 feature: {
		  	 	 	 	 	 mark: { show: true },
		  	 	 	 	 	 dataView: { show: true, readOnly: false },
		  	 	 	 	 	 magicType: { show: true, type: ["line", "bar", "stack", "tiled"] },
		  	 	 	 	 	 restore: { show: true },
		  	 	 	 	 	 saveAsImage: { show: true }
		  	 	 	 	 }
		  	 	 	 },

		  	 	 	 xAxis: {
		  	 	 	 	 data: ["周一", "周二", "周三", "周四", "周五", "周六", "周日"]
		  	 	 	 },
		  	 	 	 yAxis: {
		  	 	 	 	 type: "value"
		  	 	 	 },
		  	 	 	 series: [
						 {
						 	 name: "坐标轴触发1",
						 	 type: "bar",
						 	 data: [320, 332, 301, 334, 390, 330, 320]
						 },
						 {
						 	 name: "坐标轴触发2",
						 	 type: "bar",
						 	 data: [862, 1018, 964, 1026, 1679, 1600, 157]
						 },
						 {
						 	 name: "鼠标移动触发显示1",
						 	 type: "bar",
						 	 tooltip: {             // Series config.
						 	 	 trigger: "item",
						 	 	 backgroundColor: "black",
						 	 	 position: [0, 0],
						 	 	 formatter: "Series formatter: <br/>{a}<br/>{b}:{c}"
						 	 },
						 	 stack: "数据源",
						 	 data: [
								 120, 132,
								 {
								 	 value: 301,
								 	 itemStyle: { normal: { color: "red" } },
								 	 tooltip: {     // Data config.
								 	 	 backgroundColor: "blue",
								 	 	 formatter: "Data formatter: <br/>{a}<br/>{b}:{c}"
								 	 }
								 },
								 134, 90,
								 {
								 	 value: 230,
								 	 tooltip: { show: false }
								 },
								 210
						 	 ]
						 },
						 {
						 	 name: "鼠标移动显示2",
						 	 type: "bar",
						 	 tooltip: {
						 	 	 show: false,
						 	 	 trigger: "item"
						 	 },
						 	 stack: "数据源",
						 	 data: [150, 232, 201, 154, 190, 330, 410]
						 }
		  	 	 	 ]
		  	 	 });
		  	 }

		  </script>

整理好的Echarts文件地址如下：

http://files.cnblogs.com/kongwei521/Echarts%E8%A6%81%E7%94%A8%E5%88%B0%E7%9A%84js_css_dll.zip
