win32实现画图小程序

创建时间：2017-05-22 投稿人： 浏览次数：2030

本周我们的三级项目是用win32完成一个画图软件。今天我们也进行一个总结。如果大家觉得下面表述不清，想直接看代码，可以到我的资源页下载源代码：http://download.csdn.net/download/mr_zhaoz/9849315。

该画图软件要求实现功能：颜色选择、工具选择、画笔宽度设置、画图进行保存和打开文件、调色板的停靠、工具栏和调色板的显示和隐藏

功能演示截图如下：

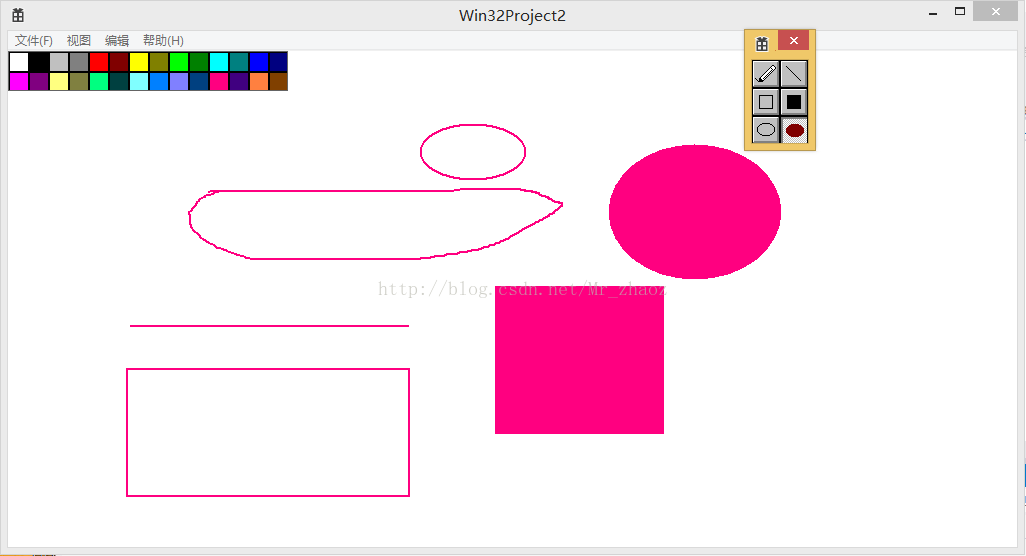

颜色选择


工具选择

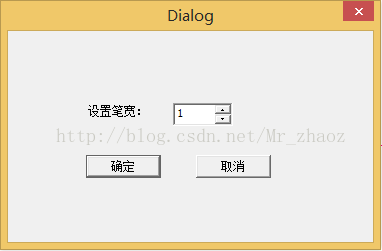

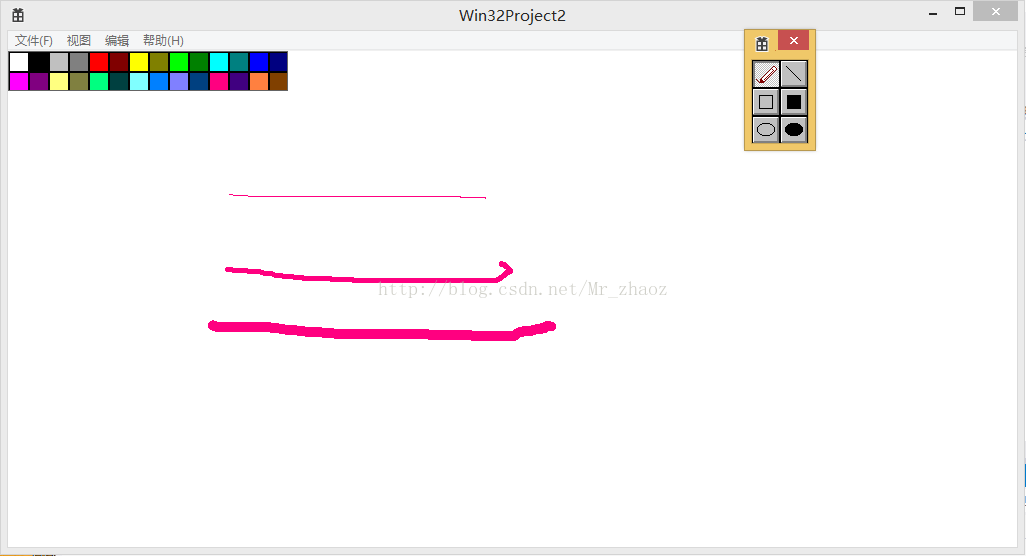

画笔宽度设置

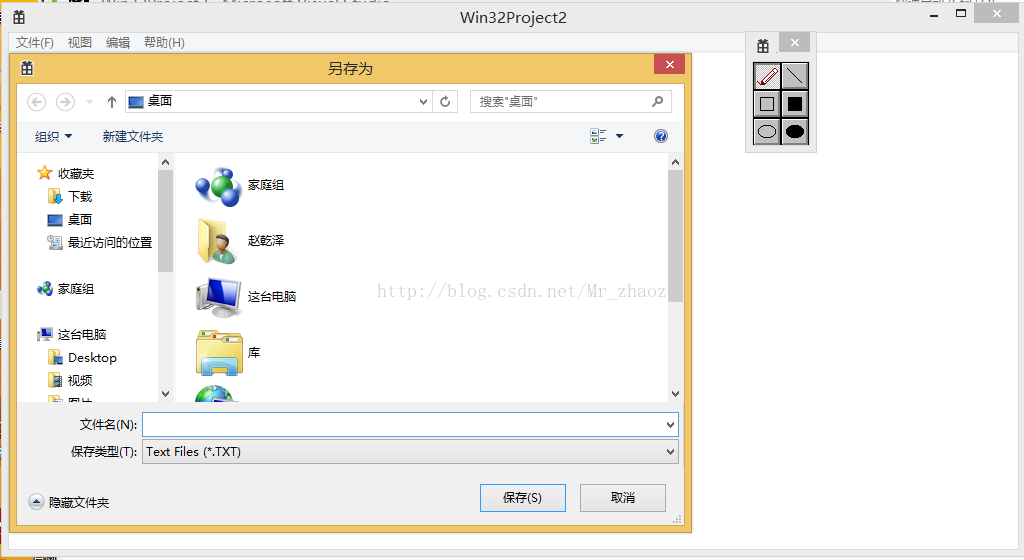

画图进行保存和打开文件

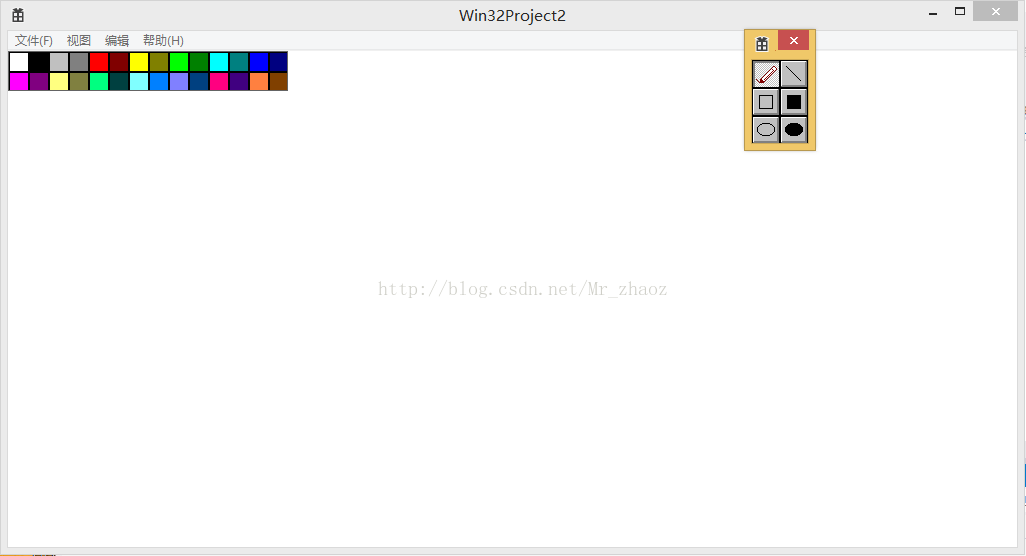

调色板的隐藏和显示

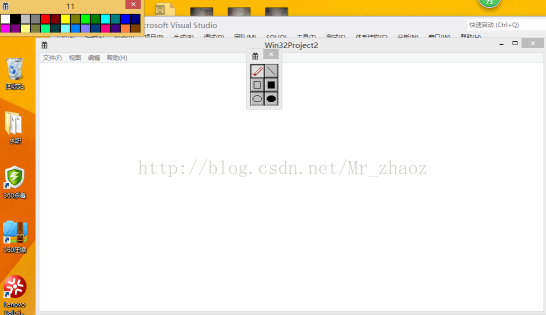

工具栏和调色板的停靠


创建了三个窗口，一个是主窗口，完成画板的主要操作；一个是调色板子窗口，用来进行画图颜色的选择和将选择颜色传给主窗口，完成颜色选择操作；另一个是工具栏窗口，用来进行画图工具的选择和将选择工具传给主窗口，完成工具选择操作。

方法一：在画图的同时，将参数存入列表中，重绘、保存、打开文件和清除窗口，都通过对这个列表进行调用来实现。

方法二：在画图时，将参数存入数组中，具体操作与方法一类似。

以下代码中，我两种方法都进行了编辑，但未区分，且方法二只完成了重绘、文件的相关操作未进行编写，还请读者注意。

主窗口的回调函数：

LRESULT CALLBACK WndProc(HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	int wmId, wmEvent;
	PAINTSTRUCT ps;
	HDC hdc;

	static TCHAR szFullFileName[300],szFileName[300];
	static HWND hWndcolorbox,hWndtoolbox;
	static COLORREF color,col[10];
	static DRAWSTRU ds;
	static PDRAWFUN pMouseDown,pMouseMove,pMouseUp;
	static POINT ptstart,ptend;
	static POINT pts[10],pte[10];
	static int shapeindex=0;
	static int iPenWidth=2;
	static HMENU hMenu;
	static bool bMouseDown=FALSE;
	static bool colorboxdock=false;

	switch (message)
	{
	case WM_COMMAND:
		wmId    = LOWORD(wParam);
		wmEvent = HIWORD(wParam);
		// 分析菜单选择:
		switch (wmId)
		{
		case IDM_ABOUT:
			DialogBox(hInst, MAKEINTRESOURCE(IDD_ABOUTBOX), hWnd, About);
			break;
		case IDM_EXIT:
			DestroyWindow(hWnd);
			break;
		case IDM_FILE_NEW:
			_tcscpy_s(szFullFileName,TEXT(""));
		case IDM_EDIT_CLEAR:
			ClearGraphic(ds.g);
			InvalidateRect(hWnd,NULL,TRUE);
			break;
		case IDM_FILE_OPEN:
			ClearGraphic(ds.g);
			if(!PopFileOpenDlg(hWnd,szFullFileName,szFileName))
				break;
			OpenGraphic(szFullFileName,ds.g);
			InvalidateRect(hWnd,NULL,TRUE);
			break;
		case IDM_FILE_SAVE:
			if(_tcslen(szFullFileName)==0)
				{
					if (!PopFileSaveDlg(hWnd,szFullFileName,szFileName))
						break;
				}
				SaveGraphic(szFullFileName,ds.g);
			break;
		case IDM_FILE_SAVEAS:
			if (!PopFileSaveDlg(hWnd,szFullFileName,szFileName))
					break;
				SaveGraphic(szFullFileName,ds.g);
			break;
		case IDM_EDIT_PENWIDTH:
			if(DialogBoxParam(hInst, (LPCTSTR)IDD_PENWIDTH,hWnd,(DLGPROC)PenWidth,(LPARAM)&iPenWidth)==IDOK)
			{
		        SendMessage(hWnd,WM_CHANGEPENWIDTH,(WPARAM)0,(LPARAM)iPenWidth);
			}
			break;

		case IDM_VIEW_COLORBOXDOCK:
			if(colorboxdock)
			{
				colorboxdock=false;
				ShowWindow(hWndcolorbox,SW_HIDE);
				hWndcolorbox=CreateWindow(szColorBtnClass,L"11",WS_CHILD|WS_BORDER|WS_VISIBLE,0,0,280,40,hWnd,NULL,hInst,(LPVOID)RGB(0,0,0));
			 	CheckMenuItem(hMenu,IDM_VIEW_COLORBOXDOCK,MF_BYCOMMAND|MF_CHECKED);
			}
			else
			{
				colorboxdock=true;
				ShowWindow(hWndcolorbox,SW_HIDE);
			    hWndcolorbox=CreateWindow(szColorBtnClass,L"11",(WS_POPUP |WS_CAPTION|WS_SYSMENU|WS_VISIBLE),0,0,330,90,hWnd,NULL,hInst,(LPVOID)RGB(0,0,0)	    	CheckMenuItem(hMenu,IDM_VIEW_COLORBOXDOCK,MF_BYCOMMAND|MF_UNCHECKED);
			}
			break;
		case IDM_VIEW_COLORBOXHIDE:
			//ShowWindow(hWndcolorbox,SW_HIDE);
			{
			if(IsWindowVisible(hWndcolorbox))
					{
						ShowWindow(hWndcolorbox,SW_HIDE);
						CheckMenuItem(hMenu,IDM_VIEW_COLORBOXHIDE,MF_BYCOMMAND|MF_CHECKED);
					}
					else
					{
						ShowWindow(hWndcolorbox,SW_SHOWNORMAL);
						CheckMenuItem(hMenu,IDM_VIEW_COLORBOXHIDE,MF_BYCOMMAND|MF_UNCHECKED);
					}
			}
			break;
		case IDM_VIEW_TOOLHIDE:
			if(IsWindowVisible(hWndtoolbox))
					{
						ShowWindow(hWndtoolbox,SW_HIDE);
						CheckMenuItem(hMenu,IDM_VIEW_TOOLHIDE,MF_BYCOMMAND|MF_CHECKED);
					}
					else
					{
						ShowWindow(hWndtoolbox,SW_SHOWNORMAL);
						CheckMenuItem(hMenu,IDM_VIEW_TOOLHIDE,MF_BYCOMMAND|MF_UNCHECKED);
					}
			break;
		default:
			return DefWindowProc(hWnd, message, wParam, lParam);
		}
		break;
	case WM_CREATE:
		{
			hWndtoolbox=CreateWindow(szShapeBtnClass,L"工具栏",(WS_POPUP |WS_CAPTION | WS_SYSMENU|WS_VISIBLE),500,100,72,122,hWnd,NULL,hInst,NULL);
			hWndcolorbox=CreateWindow(szColorBtnClass,L"11",WS_CHILD|WS_BORDER|WS_VISIBLE,0,0,280,40,hWnd,NULL,hInst,(LPVOID)RGB(0,0,0));
			hMenu=GetMenu(hWnd);

			pMouseDown=PenMouseDown;
		        pMouseUp=PenMouseUp;
		        pMouseMove=PenMouseMove;

			PopFileInitialize(hWnd);
		        ds.color=RGB(255,0,0);
			ds.bFill=false;
			ds.iPenWidth =2;
			ds.hBr=CreateSolidBrush(ds.color);
		        ds.hPen=CreatePen(PS_SOLID,ds.iPenWidth,ds.color);

			CheckMenuItem(hMenu,IDM_VIEW_COLORBOXDOCK,MF_BYCOMMAND|MF_CHECKED);
		}
		break;
	case WM_HIDECOLORBOX:
			CheckMenuItem(hMenu,IDM_VIEW_COLORBOXHIDE,MF_BYCOMMAND|MF_UNCHECKED);
			break;
	case WM_LBUTTONDOWN:
		{
			pMouseDown(&ds,hWnd,wParam,lParam);
		}
		break;
	case WM_MOUSEMOVE:
                {
		        pMouseMove(&ds,hWnd,wParam,lParam);
                }
		break;
	case WM_LBUTTONUP:
		{
			pMouseUp(&ds,hWnd,wParam,lParam);
		}
		break;
	case WM_PAINT:
		hdc = BeginPaint(hWnd, &ps);
		// TODO: 在此添加任意绘图代码...
		DrawGraphics(hdc,ds.g);（列表重绘）
		//for (int i = 0; i <= iShNum; i++)
		//{
		//	HPEN pen=CreatePen(PS_SOLID,ds.iPenWidth,SHAPESTR[i].color);
		//	SelectObject(hdc,pen);
		//	SHAPESTR[i].hBr=CreateSolidBrush(SHAPESTR[i].color);
		//	HBRUSH hbrOld=(HBRUSH)SelectObject(hdc,SHAPESTR[i].hBr);
		//	ShapeSelect(i,hdc);
		//	DeleteObject(pen);
		//	DeleteBrush(hbrOld);
		//}（结构体数组重绘）
		EndPaint(hWnd, &ps);
		break;
	case WM_CHANGECOLOR:
		{
			DeleteObject(ds.hPen);
			DeleteObject(ds.hBr);
		        ds.color=(COLORREF)lParam;
		        ds.hPen=CreatePen(PS_SOLID,ds.iPenWidth,ds.color);
		        ds.hBr=CreateSolidBrush(ds.color);
		}
		break;
	case WM_CHANGEPENWIDTH:
		        ds.iPenWidth=(INT)(lParam);
			DeleteObject(ds.hPen);
			ds.hPen=CreatePen(PS_SOLID,ds.iPenWidth,ds.color);
		break;
	case WM_CHANGETOOL:
		ds.pSh=(SHAPE)(lParam);
		//ds.pCurShp=(PDRAWSHAPE)ds.pSh;
		switch (ds.pSh)
		{
		case SHAPECURVE:
			{
			pMouseDown=PenMouseDown;
		        pMouseUp=PenMouseUp;
			pMouseMove=PenMouseMove;
			break;
			   }
		case SHAPELINE:
				{
			pMouseDown=LineMouseDown;
		        pMouseUp=LineMouseUp;
			pMouseMove=LineMouseMove;
			break;
				}
		case SHAPERECT:
				{
			ds.bFill=false;
			pMouseDown=RectMouseDown;
		        pMouseUp=RectMouseUp;
			pMouseMove=RectMouseMove;
			break;
				}
		case SHAPERECTF:
			{
			ds.bFill=true;
			pMouseDown=RectMouseDown;
		        pMouseUp=RectMouseUp;
			pMouseMove=RectMouseMove;
			break;
				}
		case SHAPECIRCLE:
			{
			ds.bFill=false;
			pMouseDown=ElliMouseDown;
		        pMouseUp=ElliMouseUp;
			pMouseMove=ElliMouseMove;
			break;
				}
		case SHAPECIRCLEF:
			{
			ds.bFill=true;
			pMouseDown=ElliMouseDown;
		        pMouseUp=ElliMouseUp;
			pMouseMove=ElliMouseMove;
			break;
				}
		}
		break;
	case WM_DESTROY:
		PostQuitMessage(0);
		break;
	default:
		return DefWindowProc(hWnd, message, wParam, lParam);
	}
	return 0;
}
调色板的回调函数：

LRESULT CALLBACK ColorBtnWndProc(HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	int wmId, wmEvent;
	PAINTSTRUCT ps;
	HDC hdc;
	int num;
	static COLORREF COLBOX[]={
		RGB(255, 255, 255), RGB(0, 0, 0),
		RGB(192, 192, 192), RGB(128, 128, 128),
		RGB(255, 0, 0),     RGB(128, 0, 0),
		RGB(255, 255, 0),   RGB(128, 128, 0),
		RGB(0, 255, 0),     RGB(0, 128, 0),
		RGB(0, 255, 255),   RGB(0, 128, 128),
		RGB(0, 0, 255),     RGB(0, 0, 128),
		RGB(255, 0, 255),   RGB(128, 0, 128),
		RGB(255, 255, 128), RGB(128, 128, 64),
		RGB(0, 255, 128),   RGB(0, 64, 64),
		RGB(128, 255, 255), RGB(0, 128, 255),
		RGB(128, 128, 255), RGB(0, 64, 128),
		RGB(255, 0, 128),   RGB(64, 0, 128),
		RGB(255, 128, 64),  RGB(128, 64, 0)};
	POINT pt,ptp;
	switch (message)
	{
	case WM_COMMAND:
		wmId    = LOWORD(wParam);
		wmEvent = HIWORD(wParam);
		// 分析菜单选择:
		switch (wmId)
		{
		case IDM_ABOUT:
			DialogBox(hInst, MAKEINTRESOURCE(IDD_ABOUTBOX), hWnd, About);
			break;
		case IDM_EXIT:
			DestroyWindow(hWnd);
			break;
		default:
			return DefWindowProc(hWnd, message, wParam, lParam);
		}
		break;
	case WM_CREATE:
		ptp.x=0;
		ptp.y=0;
		if(!(GetWindowLong(hWnd,GWL_STYLE)&WS_CHILD))
		ClientToScreen(GetParent(hWnd),&ptp);
		break;
	case WM_PAINT:
		hdc = BeginPaint(hWnd, &ps);
		// TODO: 在此添加任意绘图代码...
		for(int i=0;i<28;i++)
		{
			HBRUSH hbr=CreateSolidBrush(COLBOX[i]);
			SelectObject(hdc,hbr);
			if(i<14)
			{
				Rectangle(hdc,i*20,0,(i+1)*20,20);
			}
			else
			{
				Rectangle(hdc,(i-14)*20,20,(i-13)*20,40);
			}
			DeleteObject(hbr);
		}
		EndPaint(hWnd, &ps);
		break;
	case WM_LBUTTONDOWN:
		{
			pt.x=GET_X_LPARAM(lParam);
			pt.y=GET_Y_LPARAM(lParam);
			if(pt.y<=20)
			{
				num=pt.x/20;
			}
			else
			{
				num=pt.x/20+14;
			}
			COLORREF color=COLBOX[num];
			SendMessage(GetParent(hWnd),WM_CHANGECOLOR	,(WPARAM)0,(LPARAM)color);
		}
		break;
	case WM_DESTROY:
		PostQuitMessage(0);
		break;
	default:
		return DefWindowProc(hWnd, message, wParam, lParam);
	}
	return 0;
}

工具栏的回调函数：

LRESULT CALLBACK ShapeBtnWndProc(HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
{
	PAINTSTRUCT ps;
        HDC hdc;
	POINT pt;
	static HDC hDcMem;
	int num;
	static HBITMAP hBitmap[6][2];
	bool bFill=false;
	static SHAPE TOOLBOX[]=
	{
	SHAPECURVE,
	SHAPELINE,
	SHAPERECT,
	SHAPERECTF,
	SHAPECIRCLE,
	SHAPECIRCLEF
	};
	switch (message)
	{
	case WM_CREATE:
		{
			hdc=GetDC(hWnd);
		    hDcMem=CreateCompatibleDC(hdc);
            hBitmap[0][0]=LoadBitmap(hInst,MAKEINTRESOURCE(IDBM_TDPENCIL));
            hBitmap[0][1]=LoadBitmap(hInst,MAKEINTRESOURCE(IDBM_TUPENCIL));
            hBitmap[1][0]=LoadBitmap(hInst,MAKEINTRESOURCE(IDBM_TDLINE));
            hBitmap[1][1]=LoadBitmap(hInst,MAKEINTRESOURCE(IDBM_TULINE));
            hBitmap[2][0]=LoadBitmap(hInst,MAKEINTRESOURCE(IDBM_TDRECT));
            hBitmap[2][1]=LoadBitmap(hInst,MAKEINTRESOURCE(IDBM_TURECT));
            hBitmap[3][0]=LoadBitmap(hInst,MAKEINTRESOURCE(IDBM_TDSRECT));
            hBitmap[3][1]=LoadBitmap(hInst,MAKEINTRESOURCE(IDBM_TUSRECT));
            hBitmap[4][0]=LoadBitmap(hInst,MAKEINTRESOURCE(IDBM_TDCIRCLE));
            hBitmap[4][1]=LoadBitmap(hInst,MAKEINTRESOURCE(IDBM_TUCIRCLE));
            hBitmap[5][0]=LoadBitmap(hInst,MAKEINTRESOURCE(IDBM_TDSCIRCLE));
            hBitmap[5][1]=LoadBitmap(hInst,MAKEINTRESOURCE(IDBM_TUSCIRCLE));
		}
		break;
	case WM_PAINT:
		hdc = BeginPaint(hWnd, &ps);
		SelectObject(hDcMem,hBitmap[0][0]);
		BitBlt(hdc,0,0,100,100,hDcMem,0,0,SRCCOPY);
		SelectObject(hDcMem,hBitmap[1][1]);
		BitBlt(hdc,28,0,100,100,hDcMem,0,0,SRCCOPY);
		SelectObject(hDcMem,hBitmap[2][1]);
		BitBlt(hdc,0,28,100,100,hDcMem,0,0,SRCCOPY);
		SelectObject(hDcMem,hBitmap[3][1]);
		BitBlt(hdc,28,28,100,100,hDcMem,0,0,SRCCOPY);
		SelectObject(hDcMem,hBitmap[4][1]);
		BitBlt(hdc,0,56,100,100,hDcMem,0,0,SRCCOPY);
		SelectObject(hDcMem,hBitmap[5][1]);
		BitBlt(hdc,28,56,100,100,hDcMem,0,0,SRCCOPY);
		EndPaint(hWnd, &ps);
		break;
	case WM_LBUTTONDOWN:
		{
			HDC hdc=GetDC(hWnd);
			pt.x=GET_X_LPARAM(lParam);
			pt.y=GET_Y_LPARAM(lParam);
			int cx=pt.x/28;
			int cy=pt.y/28;
			if(cy==0)
			{
				if(cx==0)
				{
					num=0;
					SelectObject(hDcMem,hBitmap[0][0]);
		            BitBlt(hdc,0,0,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[1][1]);
		            BitBlt(hdc,28,0,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[2][1]);
		            BitBlt(hdc,0,28,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[3][1]);
		            BitBlt(hdc,28,28,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[4][1]);
		            BitBlt(hdc,0,56,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[5][1]);
		            BitBlt(hdc,28,56,100,100,hDcMem,0,0,SRCCOPY);

				}
				else
				{
					num=1;
					SelectObject(hDcMem,hBitmap[0][1]);
		            BitBlt(hdc,0,0,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[1][0]);
		            BitBlt(hdc,28,0,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[2][1]);
		            BitBlt(hdc,0,28,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[3][1]);
		            BitBlt(hdc,28,28,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[4][1]);
		            BitBlt(hdc,0,56,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[5][1]);
		            BitBlt(hdc,28,56,100,100,hDcMem,0,0,SRCCOPY);
				}
			}
			else if(cy==1)
			{
				if(cx==0)
				{
					bFill=false;
					num=2;
					SelectObject(hDcMem,hBitmap[0][1]);
		            BitBlt(hdc,0,0,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[1][1]);
		            BitBlt(hdc,28,0,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[2][0]);
		            BitBlt(hdc,0,28,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[3][1]);
		            BitBlt(hdc,28,28,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[4][1]);
		            BitBlt(hdc,0,56,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[5][1]);
		            BitBlt(hdc,28,56,100,100,hDcMem,0,0,SRCCOPY);
				}
				else
				{
					bFill=true;
					num=3;
					SelectObject(hDcMem,hBitmap[0][1]);
		            BitBlt(hdc,0,0,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[1][1]);
		            BitBlt(hdc,28,0,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[2][1]);
		            BitBlt(hdc,0,28,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[3][0]);
		            BitBlt(hdc,28,28,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[4][1]);
		            BitBlt(hdc,0,56,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[5][1]);
		            BitBlt(hdc,28,56,100,100,hDcMem,0,0,SRCCOPY);
				}
			}
			else if(cy==2)
			{
				if(cx==0)
				{
					bFill=false;
					num=4;
					SelectObject(hDcMem,hBitmap[0][1]);
		            BitBlt(hdc,0,0,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[1][1]);
		            BitBlt(hdc,28,0,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[2][1]);
		            BitBlt(hdc,0,28,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[3][1]);
		            BitBlt(hdc,28,28,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[4][0]);
		            BitBlt(hdc,0,56,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[5][1]);
		            BitBlt(hdc,28,56,100,100,hDcMem,0,0,SRCCOPY);
				}
				else
				{
					bFill=true;
					num=5;
					SelectObject(hDcMem,hBitmap[0][1]);
		            BitBlt(hdc,0,0,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[1][1]);
		            BitBlt(hdc,28,0,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[2][1]);
		            BitBlt(hdc,0,28,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[3][1]);
		            BitBlt(hdc,28,28,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[4][1]);
		            BitBlt(hdc,0,56,100,100,hDcMem,0,0,SRCCOPY);
		            SelectObject(hDcMem,hBitmap[5][0]);
		            BitBlt(hdc,28,56,100,100,hDcMem,0,0,SRCCOPY);
				}
			}
			SHAPE nTool=TOOLBOX[num];
			SendMessage(GetParent(hWnd),WM_CHANGETOOL,bFill,(LPARAM)nTool);
		}
		break;
	case WM_DESTROY:
		PostQuitMessage(0);
		break;
	default:
		return DefWindowProc(hWnd, message, wParam, lParam);
	}
	return 0;

}
画笔宽度设置的回调函数：

LRESULT CALLBACK PenWidth(HWND hDlg, UINT message, WPARAM wParam, LPARAM lParam)
{

	HWND hWndSpin;
	INT wmId;
	static INT *piPenWidth;
	switch (message)
	{
		case WM_INITDIALOG:
			piPenWidth=(INT *)(lParam);
			hWndSpin=GetDlgItem(hDlg,IDC_SPIN);
			SetDlgItemInt(hDlg,IDC_EDIT,*piPenWidth,FALSE);//设置指定控件的值
			SendMessage(hWndSpin,UDM_SETRANGE ,(WPARAM)0,(LPARAM)MAKELONG (10 , 1));
			return TRUE;

		case WM_COMMAND:
			{
				BOOL bSuccessed;
				wmId=LOWORD(wParam);
				switch (wmId)
				{
				case IDOK:
					*piPenWidth=GetDlgItemInt(hDlg,IDC_EDIT,&bSuccessed,FALSE);
					EndDialog(hDlg, LOWORD(wParam));
					break;
				case IDCANCEL:
					EndDialog(hDlg, LOWORD(wParam));
					break;
				}
				return TRUE;
			}
			break;
	}
    return FALSE;
}
画笔设置函数：

void PenMouseDown( PDRAWSTRU pDs,HWND hWnd,WPARAM wParam,LPARAM lParam)
{
	pDs->ptStart.x=GET_X_LPARAM(lParam);
	pDs->ptStart.y=GET_Y_LPARAM(lParam);
	pDs->ptPrev.x=pDs->ptStart.x;
	pDs->ptPrev.y=pDs->ptStart.y;
	pDs->bMouseDown=TRUE;

	iShNum++;
	SHAPESTR[iShNum].pSh=SHAPECURVE;
	SHAPESTR[iShNum].color=pDs->color;
	SHAPESTR[iShNum].iPenWidth=pDs->iPenWidth;
	SHAPESTR[iShNum].ptStart=pDs->ptStart;
	SHAPESTR[iShNum].ptEnd=pDs->ptEnd;


	//-----新建DRAWSHAPE对象以存储曲线的信息
	PDRAWCURVE pCurve;
	PDRAWSHAPE pShp;
	pShp=new DRAWSHAPE;
	pDs->pCurShp=pShp;
	pShp->color=pDs->color;
	pShp->shape=SHAPECURVE;
	pShp->penWidth=pDs->iPenWidth;
	pCurve=new DRAWCURVE;
	pShp->pData=pCurve;
	SHAPESTR[iShNum].pData=pCurve;
	pCurve->AddTail(pDs->ptStart);
	//-----新建DRAWSHAPE对象以存储曲线的信息
	SetCapture(hWnd);
}
void PenMouseUp( PDRAWSTRU pDs,HWND hWnd,WPARAM wParam,LPARAM lParam)
{
	HDC hdc;
	if(pDs->bMouseDown)
	{
		pDs->bMouseDown=FALSE;
		ReleaseCapture();
		hdc=GetDC(hWnd);
		MoveToEx(hdc,pDs->ptPrev.x,pDs->ptPrev.y,NULL);

		pDs->ptEnd.x=GET_X_LPARAM(lParam);
		pDs->ptEnd.y=GET_Y_LPARAM(lParam);
		HPEN hPenOld=(HPEN)SelectObject(hdc,pDs->hPen);//增加的画笔选择代码
		LineTo(hdc,pDs->ptEnd.x,pDs->ptEnd.y);
		SetPixel(hdc,pDs->ptEnd.x,pDs->ptEnd.y,pDs->color);
		SelectObject(hdc,hPenOld);//增加的选出画笔的代码
		ReleaseDC(hWnd,hdc);

		SHAPESTR[iShNum].pSh=SHAPECURVE;
	SHAPESTR[iShNum].color=pDs->color;
	SHAPESTR[iShNum].iPenWidth=pDs->iPenWidth;

		//-----取得DRAWSHAPE对象以存储曲线的信息
		PDRAWCURVE pCurve;
		PDRAWSHAPE pShp;
		pShp=pDs->pCurShp;
		pCurve=(PDRAWCURVE)pShp->pData;
		pCurve=(PDRAWCURVE)SHAPESTR[iShNum].pData;
		pCurve->AddTail(pDs->ptEnd);
		pDs->g.AddTail(pShp);
		//-----新建DRAWSHAPE对象以存储曲线的信息
	}
}
void PenMouseMove( PDRAWSTRU pDs,HWND hWnd,WPARAM wParam,LPARAM lParam)
{
	HDC hdc;
	if(pDs->bMouseDown)
	{
		hdc=GetDC(hWnd);
		HPEN hPenOld=(HPEN)SelectObject(hdc,pDs->hPen);//增加的画笔选择代码
		MoveToEx(hdc,pDs->ptPrev.x,pDs->ptPrev.y,NULL);
		pDs->ptPrev.x=GET_X_LPARAM(lParam);
		pDs->ptPrev.y=GET_Y_LPARAM(lParam);
		LineTo(hdc,pDs->ptPrev.x,pDs->ptPrev.y);
		SelectObject(hdc,hPenOld);//增加的选出画笔的代码
		ReleaseDC(hWnd,hdc);

		SHAPESTR[iShNum].pSh=SHAPECURVE;
	    SHAPESTR[iShNum].color=pDs->color;
	    SHAPESTR[iShNum].iPenWidth=pDs->iPenWidth;

		//-----取得DRAWSHAPE对象以存储曲线的信息
		PDRAWCURVE pCurve;
		PDRAWSHAPE pShp;
		pShp=pDs->pCurShp;
		pCurve=(PDRAWCURVE)pShp->pData;
		pCurve=(PDRAWCURVE)SHAPESTR[iShNum].pData;
		pCurve->AddTail(pDs->ptPrev);
		//-----新建DRAWSHAPE对象以存储曲线的信息
	}
}
void LineMouseDown(PDRAWSTRU pDs,HWND hWnd,WPARAM wParam,LPARAM lParam)
{
	pDs->ptStart.x=GET_X_LPARAM(lParam);
	pDs->ptStart.y=GET_Y_LPARAM(lParam);
	pDs->ptEnd.x=pDs->ptStart.x;
	pDs->ptEnd.y=pDs->ptStart.y;
	pDs->bMouseDown=TRUE;
	SetCapture(hWnd);
}
void LineMouseUp(PDRAWSTRU pDs,HWND hWnd,WPARAM wParam,LPARAM lParam)
{
	HDC hdc;
	if (pDs->bMouseDown)
	{
		pDs->bMouseDown=FALSE;
		ReleaseCapture();//该函数从当前线程中的窗口释放鼠标捕获，并恢复通常的鼠标输入处理
		hdc=GetDC(hWnd);
		SetROP2(hdc,R2_NOT);//用于设定当前前景色的混合模式。R2_NOT就是取反的意思，即前景色为背景色的反色，经常用R2_NOT来画橡皮线，因为两次取反可以还原背景色。
		MoveToEx(hdc,pDs->ptStart.x,pDs->ptStart.y,NULL);
		LineTo(hdc,pDs->ptEnd.x,pDs->ptEnd.y);
		pDs->ptEnd.x=GET_X_LPARAM(lParam);
		pDs->ptEnd.y=GET_Y_LPARAM(lParam);
		SetROP2(hdc,R2_COPYPEN);//使用当前的画笔颜色
		HPEN hPenOld=(HPEN)SelectObject(hdc,pDs->hPen);//增加的画笔选择代码
		MoveToEx(hdc,pDs->ptStart.x,pDs->ptStart.y,NULL);
		LineTo(hdc,pDs->ptEnd.x,pDs->ptEnd.y);
		SelectObject(hdc,hPenOld);//增加的选出画笔的代码
		ReleaseDC(hWnd,hdc);
		iShNum++;
		SHAPESTR[iShNum].pSh=SHAPELINE;
		SHAPESTR[iShNum].ptStart=pDs->ptStart;
		SHAPESTR[iShNum].ptEnd=pDs->ptEnd;
		SHAPESTR[iShNum].color=pDs->color;
	PDRAWSHAPE pShp;
	pShp=new DRAWSHAPE;
	pShp->color=pDs->color;
	pShp->shape=SHAPELINE;
	pShp->penWidth=pDs->iPenWidth;
	pShp->ptStart=pDs->ptStart;
	pShp->ptEnd=pDs->ptEnd;
	if((pDs->ptStart.x==pDs->ptEnd.x)&&(pDs->ptEnd.y==pDs->ptStart.y))
	{//如果起点与终点相同则删除线段
		delete pShp;
	}
	else
	{//存储线段
		pDs->g.AddTail(pShp);
	}
	//-----将新建DRAWSHAPE对象添加到g中
	}
}
void LineMouseMove(PDRAWSTRU pDs,HWND hWnd,WPARAM wParam,LPARAM lParam)
{
	HDC hdc;
	if(pDs->bMouseDown)
	{
		hdc=GetDC(hWnd);
		HPEN hPenOld=(HPEN)SelectObject(hdc,pDs->hPen);//增加的画笔选择代码
		//SelectObject(hdc,pDs->hPen);
			SetROP2(hdc,R2_NOTXORPEN);
		MoveToEx(hdc,pDs->ptStart.x,pDs->ptStart.y,NULL);
		LineTo(hdc,pDs->ptEnd.x,pDs->ptEnd.y);
		pDs->ptEnd.x=GET_X_LPARAM(lParam);
		pDs->ptEnd.y=GET_Y_LPARAM(lParam);
		MoveToEx(hdc,pDs->ptStart.x,pDs->ptStart.y,NULL);
		LineTo(hdc,pDs->ptEnd.x,pDs->ptEnd.y);
		ReleaseDC(hWnd,hdc);
	}
}
void RectMouseDown(PDRAWSTRU pDs,HWND hWnd,WPARAM wParam,LPARAM lParam)
{
	pDs->ptStart.x=GET_X_LPARAM(lParam);
	pDs->ptStart.y=GET_Y_LPARAM(lParam);
	pDs->ptEnd.x=pDs->ptStart.x;
	pDs->ptEnd.y=pDs->ptStart.y;
	pDs->bMouseDown=TRUE;
	//-----新建DRAWSHAPE对象以存储矩形的信息
	//PDRAWRECT pRect;
	//PDRAWSHAPE pShp;
	//pShp=new DRAWSHAPE;
	////pDs->pCurShp=pShp;
	//pShp->color=pDs->color;
	//pShp->shape=SHAPERECT;
	//pShp->penWidth=pDs->iPenWidth;
	//pRect=new DRAWRECT;
	//pShp->pData=pRect;
	//pRect->rect.left=pDs->ptStart.x;
	//pRect->rect.top=pDs->ptStart.y;
	//pRect->rect.right=pDs->ptEnd.x;
	//pRect->rect.bottom=pDs->ptEnd.y;
	//pRect->bFill=pDs->bFill;
	////-----新建DRAWSHAPE对象以存储矩形的信息

	SetCapture(hWnd);
}
void RectMouseUp(PDRAWSTRU pDs,HWND hWnd,WPARAM wParam,LPARAM lParam)
{

	HDC hdc;
	if(pDs->bMouseDown)
	{
		pDs->bMouseDown=FALSE;
		ReleaseCapture();
		hdc=GetDC(hWnd);
		SetROP2(hdc,R2_NOT);
		pDs->hBr=CreateSolidBrush(pDs->color);
		HBRUSH hbrOld=(HBRUSH)SelectObject(hdc,pDs->hBr);
		if(pDs->bFill==false)
			{
			    SelectObject(hdc,GetStockObject(NULL_BRUSH));
			}
		Rectangle(hdc,pDs->ptStart.x,pDs->ptStart.y,pDs->ptEnd.x,pDs->ptEnd.y);
		pDs->ptEnd.x=GET_X_LPARAM(lParam);
		pDs->ptEnd.y=GET_Y_LPARAM(lParam);
		SetROP2(hdc,R2_COPYPEN);
		HPEN hPenOld=(HPEN)SelectObject(hdc,pDs->hPen);//增加的画笔选择代码

		Rectangle(hdc,pDs->ptStart.x,pDs->ptStart.y,pDs->ptEnd.x,pDs->ptEnd.y);
		SelectObject(hdc,hPenOld);//增加的选出画笔的代码
		ReleaseDC(hWnd,hdc);
		iShNum++;
		SHAPESTR[iShNum].pSh=SHAPERECT;
		SHAPESTR[iShNum].bFill=pDs->bFill;
		SHAPESTR[iShNum].ptStart=pDs->ptStart;
		SHAPESTR[iShNum].ptEnd=pDs->ptEnd;
		SHAPESTR[iShNum].color=pDs->color;
	PDRAWSHAPE pShp;
	pShp=new DRAWSHAPE;
	pShp->color=pDs->color;
	pShp->shape=SHAPERECT;
	pShp->penWidth=pDs->iPenWidth;
	pShp->ptStart=pDs->ptStart;
	pShp->ptEnd=pDs->ptEnd;
	pShp->bFill=pDs->bFill;
	if((pDs->ptStart.x==pDs->ptEnd.x)&&(pDs->ptEnd.y==pDs->ptStart.y))
	{//如果起点与终点相同则删除线段
		delete pShp;
	}
	else
	{//存储线段
		pDs->g.AddTail(pShp);
	}
	//-----将新建DRAWSHAPE对象添加到g中
	}
}
void RectMouseMove(PDRAWSTRU pDs,HWND hWnd,WPARAM wParam,LPARAM lParam)
{
	HDC hdc;
	if(pDs->bMouseDown)
	{
		hdc=GetDC(hWnd);
		HPEN hPenOld=(HPEN)SelectObject(hdc,pDs->hPen);
		SetROP2(hdc,R2_NOTXORPEN);
		pDs->hBr=CreateSolidBrush(pDs->color);
		HBRUSH hbrOld=(HBRUSH)SelectObject(hdc,pDs->hBr);
		if(pDs->bFill==false)
			{
			    SelectObject(hdc,GetStockObject(NULL_BRUSH));
			}
		Rectangle(hdc,pDs->ptStart.x,pDs->ptStart.y,pDs->ptEnd.x,pDs->ptEnd.y);
		pDs->ptEnd.x=GET_X_LPARAM(lParam);
		pDs->ptEnd.y=GET_Y_LPARAM(lParam);
		Rectangle(hdc,pDs->ptStart.x,pDs->ptStart.y,pDs->ptEnd.x,pDs->ptEnd.y);
		ReleaseDC(hWnd,hdc);
	}
}
void ElliMouseDown(PDRAWSTRU pDs,HWND hWnd,WPARAM wParam,LPARAM lParam)
{
	pDs->ptStart.x=GET_X_LPARAM(lParam);
	pDs->ptStart.y=GET_Y_LPARAM(lParam);
	pDs->ptEnd.x=pDs->ptStart.x;
	pDs->ptEnd.y=pDs->ptStart.y;
	pDs->bMouseDown=TRUE;
	////-----新建DRAWSHAPE对象以存储圆的信息
	//PDRAWRECT pRect;
	//PDRAWSHAPE pShp;
	//pShp=new DRAWSHAPE;
	//pDs->pCurShp=pShp;
	//pShp->color=pDs->color;
	//pShp->shape=SHAPECIRCLE;
	//pShp->penWidth=pDs->iPenWidth;
	//pRect=new DRAWRECT;
	//pShp->pData=pRect;
	//pRect->rect.left=pDs->ptStart.x;
	//pRect->rect.top=pDs->ptStart.y;
	//pRect->rect.right=pDs->ptEnd.x;
	//pRect->rect.bottom=pDs->ptEnd.y;
	//pRect->bFill=pDs->bFill;
	////-----新建DRAWSHAPE对象以存储圆的信息
}
void ElliMouseUp(PDRAWSTRU pDs,HWND hWnd,WPARAM wParam,LPARAM lParam)
{
	HDC hdc;
	if(pDs->bMouseDown)
	{
		pDs->bMouseDown=FALSE;
		ReleaseCapture();
		hdc=GetDC(hWnd);
		SetROP2(hdc,R2_NOT);
		pDs->hBr=CreateSolidBrush(pDs->color);
		HBRUSH hbrOld=(HBRUSH)SelectObject(hdc,pDs->hBr);
		if(pDs->bFill==false)
			{
			    SelectObject(hdc,GetStockObject(NULL_BRUSH));
			}
		Ellipse(hdc,pDs->ptStart.x,pDs->ptStart.y,pDs->ptEnd.x,pDs->ptEnd.y);
		pDs->ptEnd.x=GET_X_LPARAM(lParam);
		pDs->ptEnd.y=GET_Y_LPARAM(lParam);
		SetROP2(hdc,R2_COPYPEN);
		HPEN hPenOld=(HPEN)SelectObject(hdc,pDs->hPen);//增加的画笔选择代码
		Ellipse(hdc,pDs->ptStart.x,pDs->ptStart.y,pDs->ptEnd.x,pDs->ptEnd.y);
		SelectObject(hdc,hPenOld);//增加的选出画笔的代码
		ReleaseDC(hWnd,hdc);
		iShNum++;
		SHAPESTR[iShNum].pSh=SHAPECIRCLE;
		SHAPESTR[iShNum].bFill=pDs->bFill;
		SHAPESTR[iShNum].ptStart=pDs->ptStart;
		SHAPESTR[iShNum].ptEnd=pDs->ptEnd;
		SHAPESTR[iShNum].color=pDs->color;

		PDRAWSHAPE pShp;
		pShp=new DRAWSHAPE;
		pShp->color=pDs->color;
		pShp->shape=SHAPECIRCLE;
		pShp->penWidth=pDs->iPenWidth;
		pShp->ptStart=pDs->ptStart;
		pShp->ptEnd=pDs->ptEnd;
		pShp->bFill=pDs->bFill;
		if((pDs->ptStart.x==pDs->ptEnd.x)&&(pDs->ptEnd.y==pDs->ptStart.y))
		{//如果起点与终点相同则删除线段
			delete pShp;
		}
		else
		{//存储线段
			pDs->g.AddTail(pShp);
		}
		}
	//-----将新建DRAWSHAPE对象添加到g中
}
void ElliMouseMove(PDRAWSTRU pDs,HWND hWnd,WPARAM wParam,LPARAM lParam)
{
	HDC hdc;
	if(pDs->bMouseDown)
	{
		hdc=GetDC(hWnd);
		HPEN hPenOld=(HPEN)SelectObject(hdc,pDs->hPen);
		SetROP2(hdc,R2_NOTXORPEN);
		pDs->hBr=CreateSolidBrush(pDs->color);
		HBRUSH hbrOld=(HBRUSH)SelectObject(hdc,pDs->hBr);
		if(pDs->bFill==false)
			{
			    SelectObject(hdc,GetStockObject(NULL_BRUSH));
			}
		Ellipse(hdc,pDs->ptStart.x,pDs->ptStart.y,pDs->ptEnd.x,pDs->ptEnd.y);
		pDs->ptEnd.x=GET_X_LPARAM(lParam);
		pDs->ptEnd.y=GET_Y_LPARAM(lParam);
		Ellipse(hdc,pDs->ptStart.x,pDs->ptStart.y,pDs->ptEnd.x,pDs->ptEnd.y);
		ReleaseDC(hWnd,hdc);
	}
}
结构体数组的重绘操作：

void ShapeSelect(int i,HDC hdc)
{
			switch (SHAPESTR[i].pSh)
			{
			case SHAPECURVE:
				{
					PDRAWCURVE pCurve=(PDRAWCURVE)(SHAPESTR[i].pData);
					POSITION pos;
					POINT pt;
					pos=pCurve->GetHeadPosition();//获取链表头部位置
					pt=pCurve->GetNext(pos);//获取该值，并且pos加一
					MoveToEx(hdc,pt.x,pt.y,NULL);
					while(pos)
					{
						pt=pCurve->GetNext(pos);
						LineTo(hdc,pt.x,pt.y);
					}
					SetPixel(hdc,pt.x,pt.y,SHAPESTR[i].color);//该函数将指定坐标处的像素设为指定的颜色。
				}
				break;
			case SHAPELINE:
			    MoveToEx(hdc,SHAPESTR[i].ptStart.x,SHAPESTR[i].ptStart.y,NULL);
			    LineTo(hdc,SHAPESTR[i].ptEnd.x,SHAPESTR[i].ptEnd.y);
				break;
			case SHAPERECT:
			    if(SHAPESTR[i].bFill==false)
			    {
			        SelectObject(hdc,GetStockObject(NULL_BRUSH));
			    }
			    Rectangle(hdc,SHAPESTR[i].ptStart.x,SHAPESTR[i].ptStart.y,SHAPESTR[i].ptEnd.x,SHAPESTR[i].ptEnd.y);
				break;
			case SHAPECIRCLE:
			    if(SHAPESTR[i].bFill==false)
			    {
			        SelectObject(hdc,GetStockObject(NULL_BRUSH));
			    }
			    Ellipse(hdc,SHAPESTR[i].ptStart.x,SHAPESTR[i].ptStart.y,SHAPESTR[i].ptEnd.x,SHAPESTR[i].ptEnd.y);
				break;
			}
}
列表的重绘操作：

 DrawShape(HDC hdc,PDRAWSHAPE &pShp)
{
	HPEN hPen,hOldPen;
	HBRUSH hBr,hOldBr;
	PDRAWCURVE pCurve;
	hPen=CreatePen(PS_SOLID,pShp->penWidth,pShp->color);
	hBr=CreateSolidBrush(pShp->color);
	hOldPen=(HPEN)SelectObject(hdc,hPen);

	switch(pShp->shape)
	{
	case SHAPELINE:
		MoveToEx(hdc,pShp->ptStart.x,pShp->ptStart.y,NULL);
		LineTo(hdc,pShp->ptEnd.x,pShp->ptEnd.y);
		break;
	case SHAPECIRCLE:
		if(pShp->bFill)
		{
			hOldBr=(HBRUSH)SelectObject(hdc,hBr);
		}
		else
		{
			hOldBr=(HBRUSH)SelectObject(hdc,GetStockObject(NULL_BRUSH));
		}
		Ellipse(hdc,pShp->ptStart.x,pShp->ptStart.y,pShp->ptEnd.x,pShp->ptEnd.y);
		SelectObject(hdc,hOldBr);
		break;
	case SHAPERECT:
		if(pShp->bFill)
		{
			hOldBr=(HBRUSH)SelectObject(hdc,hBr);
		}
		else
		{
			hOldBr=(HBRUSH)SelectObject(hdc,GetStockObject(NULL_BRUSH));
		}
		Rectangle(hdc,pShp->ptStart.x,pShp->ptStart.y,pShp->ptEnd.x,pShp->ptEnd.y);
		SelectObject(hdc,hOldBr);
		break;
	case SHAPECURVE:
		{
			pCurve=(PDRAWCURVE)(pShp->pData);
			POSITION pos;
			POINT pt;
			pos=pCurve->GetHeadPosition();//获取链表头部位置
			pt=pCurve->GetNext(pos);//获取该值，并且pos加一
			MoveToEx(hdc,pt.x,pt.y,NULL);
			while(pos)
			{
				pt=pCurve->GetNext(pos);
				LineTo(hdc,pt.x,pt.y);
			}
			SetPixel(hdc,pt.x,pt.y,pShp->color);//该函数将指定坐标处的像素设为指定的颜色。
		}
		break;
	}
	SelectObject(hdc,hOldPen);
}
VOID DrawGraphics(HDC hdc,GRAPHICS &g)
{

	POSITION pos;
	PDRAWSHAPE pShp;
	pos=g.GetHeadPosition();
	while(pos)
	{
		pShp=g.GetNext(pos);
		DrawShape(hdc,pShp);
	}
}
保存、打开和清除文件操作：

VOID SaveGraphic(LPCTSTR lpszFilename,GRAPHICS &g)
{
	INT iCount;
	SHORT iShape;
	SHAPE shape;
	POSITION pos;
	PDRAWSHAPE pShp;
	CFile File(lpszFilename,CFile::modeWrite|CFile::modeCreate);
	CArchive ar(&File,CArchive::store);
	PDRAWCURVE pCurve;
	iCount=g.GetCount();
	ar<<iCount;
	pos=g.GetHeadPosition();

	while(pos)
	{
		pShp=g.GetNext(pos);
		shape=pShp->shape;
		iShape=(SHORT)shape;
		ar<<iShape;
		ar<<pShp->penWidth;
		ar<<pShp->color;
		switch(shape)
		{
		case SHAPELINE:
			ar<<pShp->ptStart;
			ar<<pShp->ptEnd;
			break;

		case SHAPECIRCLE:
		case SHAPERECT:
			ar<<pShp->bFill;
			ar<<pShp->ptStart;
			ar<<pShp->ptEnd;
			break;
		case SHAPECURVE:
			pCurve=(PDRAWCURVE)pShp->pData;
			pCurve->Serialize(ar);
			break;
		}
	}
}
VOID OpenGraphic(LPCTSTR lpszFilename,GRAPHICS &g)
{
	INT iCount,i;
	SHORT iShape;
	SHAPE shape;
	PDRAWSHAPE pShp;
	CFile File(lpszFilename,CFile::modeRead);
	CArchive ar(&File,CArchive::load);
	PDRAWRECT pRect;
	PDRAWCURVE pCurve;
	ar>>iCount;
	//pos=g.GetHeadPosition();

	for(i=0;i<iCount;i++)
	{

		pShp=new DRAWSHAPE;
		ar>>iShape;
		shape=pShp->shape=(SHAPE)iShape;
		ar>>pShp->penWidth;
		ar>>pShp->color;
		switch(shape)
		{
		case SHAPELINE:
			ar>> pShp->ptStart;
			ar>>pShp->ptEnd;
			break;
		case SHAPECIRCLE:
		case SHAPERECT:
			pShp->pData=pRect=new DRAWRECT;
			ar>>pShp->bFill;
			ar>> pShp->ptStart;
			ar>>pShp->ptEnd;
			break;
		case SHAPECURVE:
			pShp->pData=pCurve=new DRAWCURVE;
			pCurve->Serialize(ar);
			break;
		}
		g.AddTail(pShp);
	}

}
VOID ClearGraphic(GRAPHICS &g)
{
	PDRAWSHAPE pShp;
	while(!(g.IsEmpty()))
	{
		pShp=g.RemoveHead();
		delete pShp;
	}

}
文件相关函数：

void PopFileInitialize (HWND hwnd)
{
     static TCHAR szFilter[] = TEXT ("Text Files (*.TXT)*.txt")
                               TEXT ("ASCII Files (*.ASC)*.asc")
                               TEXT ("All Files (*.*)*.*") ;

     ofn.lStructSize       = sizeof (OPENFILENAME) ;
     ofn.hwndOwner         = hwnd ;
     ofn.hInstance         = NULL ;
     ofn.lpstrFilter       = szFilter ;
     ofn.lpstrCustomFilter = NULL ;
     ofn.nMaxCustFilter    = 0 ;
     ofn.nFilterIndex      = 0 ;
     ofn.lpstrFile         = NULL ;          // Set in Open and Close functions
     ofn.nMaxFile          = MAX_PATH ;
     ofn.lpstrFileTitle    = NULL ;          // Set in Open and Close functions
     ofn.nMaxFileTitle     = MAX_PATH ;
     ofn.lpstrInitialDir   = NULL ;
     ofn.lpstrTitle        = NULL ;
     ofn.Flags             = 0 ;             // Set in Open and Close functions
     ofn.nFileOffset       = 0 ;
     ofn.nFileExtension    = 0 ;
     ofn.lpstrDefExt       = TEXT ("txt") ;
     ofn.lCustData         = 0L ;
     ofn.lpfnHook          = NULL ;
     ofn.lpTemplateName    = NULL ;
}

BOOL PopFileOpenDlg (HWND hwnd, PTSTR pstrFileName, PTSTR pstrTitleName)
{
     ofn.hwndOwner         = hwnd ;
     ofn.lpstrFile         = pstrFileName ;
     ofn.lpstrFileTitle    = pstrTitleName ;
     ofn.Flags             = OFN_HIDEREADONLY | OFN_CREATEPROMPT ;

     return GetOpenFileName (&ofn) ;
}

BOOL PopFileSaveDlg (HWND hwnd, PTSTR pstrFileName, PTSTR pstrTitleName)
{
     ofn.hwndOwner         = hwnd ;
     ofn.lpstrFile         = pstrFileName ;
     ofn.lpstrFileTitle    = pstrTitleName ;
     ofn.Flags             = OFN_OVERWRITEPROMPT ;

     return GetSaveFileName (&ofn) ;
}







声明：该文观点仅代表作者本人，牛骨文系教育信息发布平台，牛骨文仅提供信息存储空间服务。
未上传头像

热门文章
CTF writeup 2_南邮网络攻防训...
SSM框架——详细整合教程（...
Linux Shell脚本编程－－curl命...
HttpClient使用详解
Java面试题全集（上）
JAVA设计模式之单例模式
java.lang.OutOfMemoryError: PermGen ...
TCP协议中的三次握手和四次...
form表单的两种提交方式，su...
String,StringBuffer与StringBuilder...
最新文章
Java之品优购课程讲义_day20（7）
剑指 Offer - 8：跳台阶
Netty权威指南_札记02_NIO编程
mysql时间属性之时间戳和datetime之...
虚拟现实或许可以拯救古埃及的“...
spring cloud服务注册中心eureka---集群...
Java SE 第六章
HTTP请求+数据库
HIDL学习笔记之HIDL C++（第二天）
ubuntu系统下指定tomcat运行时为JDK1.8...
copyright © 2008-2019 亿联网络 版权所有 备案号：粤ICP备14031511号-2
