基于python实时监控cpu的小工具

虽然写的很不完善，但是当练手吧，对于实时监控cpu还是有点用处的，虽然android studio已经提供了一样的功能，但是能够记录并生成成本地csv文件还是比as多一个功能的。

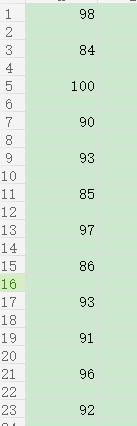

结果图：

直接放源码：

# !_*_coding:utf-8_*_

import re
import os
import wx
import thread
import pychartdir
import csv

class GetCpuStats():

    def __init__(self, name):
        self.pro_name = name

    def startWatch(self):
        _shell = "adb shell top -s cpu -n 1| findstr %s" % self.pro_name
        result = os.popen(_shell).read()
        return self.getInfo(result)

    def getInfo(self, _result):
        return [re.findall("(d+)%", _result), re.findall("Ks(d+)K", _result)]

class MyFrame(wx.Frame):

    flag = False
    _label = []
    _data = []
    _label02 = []
    _data02 = []
    num = 0
    num02 = 0

    def __init__(self):
        wx.Frame.__init__(self, parent=None, title=u"cpu检测小工具", pos=(700, 100), size=(500, 500))
        mPanel = wx.Panel(parent=self)
        mSizer = wx.BoxSizer(orient=wx.VERTICAL)
        btn_start = wx.Button(parent=mPanel, label=u"开始", style=wx.EXPAND)
        mSizer.Add(btn_start)
        btn_stop = wx.Button(parent=mPanel, label=u"停止", style=wx.EXPAND)
        mSizer.Add(btn_stop)
        self.edit = wx.TextCtrl(parent=mPanel,style=wx.EXPAND,value=u"这里输入测试的包名")
        mSizer.Add(self.edit,flag=wx.EXPAND)
        self.edit.Bind(event=wx.EVT_CHOICE, handler=self.requestFocus)
        self.bitmap_cpu = wx.StaticBitmap(parent=mPanel)
        mSizer.Add(self.bitmap_cpu, flag=wx.EXPAND)
        #self.bitmap_mem = wx.StaticBitmap(parent=mPanel)
        #mSizer.Add(self.bitmap_mem, flag=wx.EXPAND)
        mPanel.SetSizer(mSizer)
        mPanel.Fit()
        btn_start.Bind(event=wx.EVT_BUTTON, handler=self.startWatch)
        btn_stop.Bind(event=wx.EVT_BUTTON, handler=self.stopWatch)

    def requestFocus(self,event):
        self.edit.SetValue("")

    def startWatch(self, event):
        self.flag = True
        thread.start_new_thread(self.getInfo, ())

    def stopWatch(self, event):
        self.flag = False

    def getInfo(self):
        while(self.flag):
            _result = GetCpuStats(self.edit.GetValue()).startWatch()
            self.drawPic(_result)
            #self.drawPic_mem(_result)

    def writeCsv(self, _list):
        writer = csv.writer(file("tmp.csv", "a+"))
        writer.writerow([_list])

    def drawPic(self,_list):
        self.num+=1
        self._label.append(str(self.num))
        self._data.append(_list[0][0])
        self.writeCsv(_list[0][0])
        c = pychartdir.XYChart(500, 400)
        c.setPlotArea(30, 20, 400, 300)
        c.addLineLayer(self._data)
        c.xAxis().setLabels(self._label)
        c.makeChart("tmp.png")
        mImage = wx.Image("tmp.png")
        mImage = mImage.Scale(500,300)
        self.bitmap_cpu.SetBitmap(wx.BitmapFromImage(mImage))

    def drawPic_mem(self,_list):
        self.num02+=1
        self._label02.append(str(self.num02))
        self._data02.append(_list[1][0])
        c = pychartdir.XYChart(500, 400)
        c.setPlotArea(60, 40, 400, 300)
        c.addLineLayer(self._data02)
        c.xAxis().setLabels(self._label02)
        c.makeChart("tmp02.png")
        mImage = wx.Image("tmp02.png")
        mImage = mImage.Scale(500,300)
        self.bitmap_mem.SetBitmap(wx.BitmapFromImage(mImage))

if __name__ == "__main__":
    app = wx.App()
    MyFrame().Show()
    app.MainLoop()

原理：
界面用wx做的，图形用pychartdir做的，命令用的是top命令，每次截取到的数据都生成一张临时图片，然后刷新到屏幕上，看起来就是实时数据监控的效果了，基本上BUG一大堆，也懒得改了。
