C#实现Windows资源管理器文件预览

上一篇文章大致介绍了一下C++实现Windows文件预览的方法，这里介绍一下通过.NET方式实现文件预览。

其实原理还是一样，需要通过实现系统定义的COM接口，包括

IInitializeWithFile,IObjectWithSite, IOleWindow,IPreviewHandler
```等
而C#并没有定义这些接口，因此我们需要把这些接口通过System.Runtime.InteropServices先从COM中引进到项目中




<div class="se-preview-section-delimiter"></div>

[ComImport]
[InterfaceType(ComInterfaceType.InterfaceIsIUnknown)]
[Guid(“8895b1c6-b41f-4c1c-a562-0d564250836f”)]
public interface IPreviewHandler
{
///
/// Sets the parent window of the previewer window, as well as the area within the parent to be used for the previewer window.
///
/// A handle to the parent window.
/// A pointer to a RECT defining the area for the previewer.
/// If this method succeeds, it returns S_OK. Otherwise, it returns an HRESULT error code.
[PreserveSig]
int SetWindow(IntPtr hwnd, ref RECT prc);

    /// <summary>
    /// Directs the preview handler to change the area within the parent hwnd that it draws into.
    /// </summary>
    /// <param name="prc">A pointer to a RECT to be used for the preview.</param>
    /// <returns>If this method succeeds, it returns S_OK. Otherwise, it returns an HRESULT error code.</returns>
    [PreserveSig]
    int SetRect(RECT prc);

    /// <summary>
    /// Directs the preview handler to load data from the source specified in an earlier Initialize method call, and to begin rendering to the previewer window.
    /// </summary>
    /// <returns>This method can return one of these values.</returns>
    [PreserveSig]
    int DoPreview();

    /// <summary>
    /// Directs the preview handler to cease rendering a preview and to release all resources that have been allocated based on the item passed in during the initialization.
    /// </summary>
    /// <returns>If this method succeeds, it returns S_OK. Otherwise, it returns an HRESULT error code.</returns>
    [PreserveSig]
    int Unload();

    /// <summary>
    /// Directs the preview handler to set focus to itself.
    /// </summary>
    /// <returns>If this method succeeds, it returns S_OK. Otherwise, it returns an HRESULT error code.</returns>
    [PreserveSig]
    int SetFocus();

    /// <summary>
    /// Directs the preview handler to return the HWND from calling the GetFocus Function.
    /// </summary>
    /// <param name="phwnd">When this method returns, contains a pointer to the HWND returned from calling the GetFocus Function from the preview handler"s foreground thread.</param>
    /// <returns>If this method succeeds, it returns S_OK. Otherwise, it returns an HRESULT error code.</returns>
    [PreserveSig]
    int QueryFocus(out IntPtr phwnd);

    /// <summary>
    /// Directs the preview handler to handle a keystroke passed up from the message pump of the process in which the preview handler is running.
    /// </summary>
    /// <param name="pmsg">A pointer to a window message.</param>
    /// <returns>If the keystroke message can be processed by the preview handler, the handler will process it and return S_OK. If the preview handler cannot process the keystroke message, it will offer it to the host using TranslateAccelerator. If the host processes the message, this method will return S_OK. If the host does not process the message, this method will return S_FALSE.</returns>
    [PreserveSig]
    int TranslateAccelerator(MSG pmsg);
};

“`

注：代码来自SharpShell项目
接着，我们可以通过托管代码实现上述接口，并编译成托管dll。
这里需要注意的是，通过.NET框架编译出来的DLL，即使实现了一些COM接口，但它本质上并不是COM组件，但是.NET的运行环境CLR本身却是一个COM组件，名为mscoree.dll。因此，对托管DLL组件注册时应该按照以下规则：

可以看到，被注册的COM组件其实是mscoree.dll，而我们的托管程序只是作为被该组件调用的一个插件。
在注册了该组件之后，照上一篇文章的方法，把文件类型与应用CLSID进行绑定，我们就可以在资源管理器中对文件进行预览了。

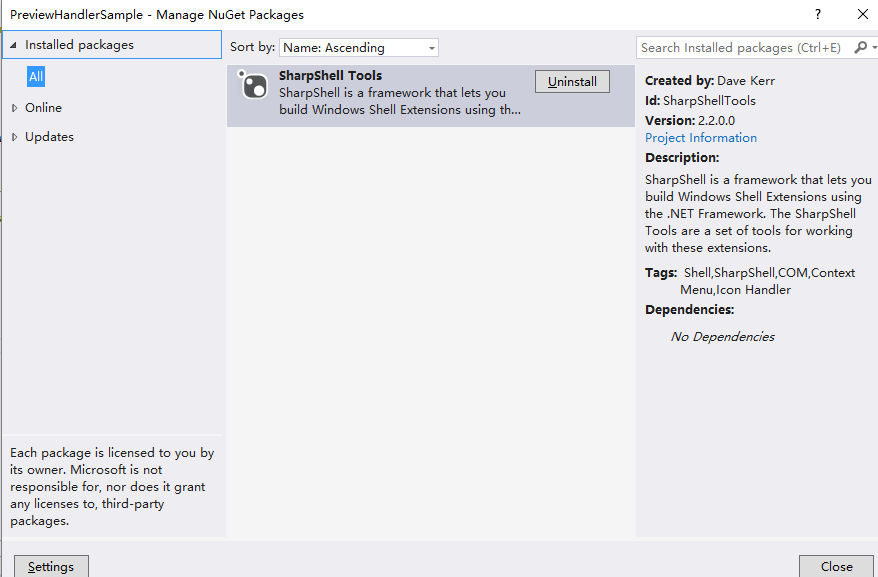

另外，如果利用SharpShell库提供的方法，我们不必自己对COM接口进行引入，SharpShell为我们提供了多种Windows Shell接口托管封装，包括DropHandler, IconHandler, IconOverlayHandler,InfoTipHandler,PreviewHandler,PropertySheet以及ContexMenu的封装。使用的方法也很简单，在新建了.NET项目之后可以通过Nuget包对其进行引用，最新版本支持.NET 4.5

另外SharpShell的源码和例程也可以在
http://www.codeproject.com/script/articles/download.aspx?file=/KB/shell/533948/SharpShell_Source_Code.zip&rp=http://www.codeproject.com/Articles/533948/NET-Shell-Extensions-Shell-Preview-Handlers找到

由于SharpShell提供了很好的托管封装，在自定义Windows交互的时候非常推荐大家使用。
