微服务之 -- dubbox初次使用

创建时间：2017-01-17 投稿人： 浏览次数：881

介绍就免了，自己行百度。

官网地址：https://github.com/dangdangdotcom/dubbox

Dubbox需要什么版本的JDK？

目前最好在JDK 1.7以上运行

Dubbo REST的服务能和Dubbo注册中心、监控中心集成吗？

可以的，而且是自动集成的，也就是你在dubbo中开发的所有REST服务都会自动注册到服务册中心和监控中心，可以通过它们做管理。

但是，只有当REST的消费端也是基于dubbo的时候，注册中心中的许多服务治理操作才能完全起作用。而如果消费端是非dubbo的，自然不受注册中心管理，所以其中很多操作是不会对消费端起作用的。

不废话，代码可以说明一切

可以参考官方的文档 http://dangdangdotcom.github.io/dubbox/rest.html

一、先从git上面下载项目，然后在项目根目录执行mvn install，执行完成之后将下图中红色框里面的war包放tomcat里面运行。


二、创建如下项目

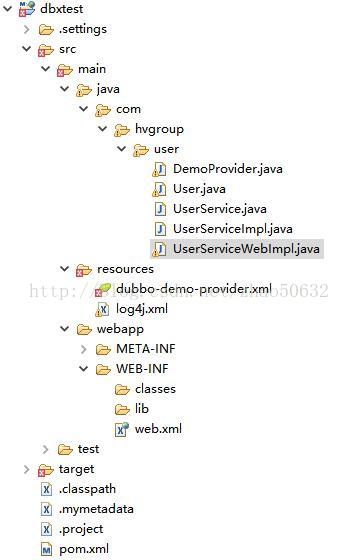

项目程序结构如图：


1、pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>hvgroup</groupId>
  <artifactId>com</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>war</packaging>
  <name>dbxtest</name>
  <dependencies>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo-demo-api</artifactId>
            <version>2.8.4</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
            <version>2.8.4</version>
        </dependency>
        <dependency>
            <groupId>org.javassist</groupId>
            <artifactId>javassist</artifactId>
            <version>3.20.0-GA</version>
        </dependency>
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty</artifactId>
            <version>3.7.0.Final</version>
        </dependency>
        <dependency>
            <groupId>org.apache.mina</groupId>
            <artifactId>mina-core</artifactId>
            <version>1.1.7</version>
        </dependency>
        <dependency>
            <groupId>org.glassfish.grizzly</groupId>
            <artifactId>grizzly-core</artifactId>
            <version>2.1.4</version>
        </dependency>
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
            <version>4.2.1</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.1.39</version>
        </dependency>
        <dependency>
            <groupId>com.thoughtworks.xstream</groupId>
            <artifactId>xstream</artifactId>
            <version>1.4.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.bsf</groupId>
            <artifactId>bsf-api</artifactId>
            <version>3.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.4.6</version>
        </dependency>
        <dependency>
            <groupId>com.github.sgroschupf</groupId>
            <artifactId>zkclient</artifactId>
            <version>0.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>2.5.0</version>
        </dependency>
        <dependency>
            <groupId>com.googlecode.xmemcached</groupId>
            <artifactId>xmemcached</artifactId>
            <version>1.3.6</version>
        </dependency>
        <dependency>
            <groupId>org.apache.cxf</groupId>
            <artifactId>cxf-rt-frontend-simple</artifactId>
            <version>2.6.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.cxf</groupId>
            <artifactId>cxf-rt-transports-http</artifactId>
            <version>2.6.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.thrift</groupId>
            <artifactId>libthrift</artifactId>
            <version>0.8.0</version>
        </dependency>
        <dependency>
            <groupId>com.caucho</groupId>
            <artifactId>hessian</artifactId>
            <version>4.0.7</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
        </dependency>
        <dependency>
            <groupId>org.mortbay.jetty</groupId>
            <artifactId>jetty</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.mortbay.jetty</groupId>
                    <artifactId>servlet-api</artifactId>
                </exclusion>
            </exclusions>
            <version>6.1.26</version>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.16</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.6.2</version>
        </dependency>
        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
            <version>2.1.0</version>
        </dependency>
        <dependency>
            <groupId>javax.validation</groupId>
            <artifactId>validation-api</artifactId>
            <version>1.0.0.GA</version>
        </dependency>
        <dependency>
            <groupId>org.hibernate</groupId>
            <artifactId>hibernate-validator</artifactId>
            <version>4.2.0.Final</version>
        </dependency>
        <dependency>
            <groupId>javax.cache</groupId>
            <artifactId>cache-api</artifactId>
            <version>0.4</version>
        </dependency>

        <dependency>
            <groupId>org.jboss.resteasy</groupId>
            <artifactId>resteasy-jaxrs</artifactId>
            <version>3.0.7.Final</version>
        </dependency>

        <dependency>
            <groupId>org.jboss.resteasy</groupId>
            <artifactId>resteasy-client</artifactId>
            <version>3.0.7.Final</version>
        </dependency>

        <dependency>
            <groupId>org.jboss.resteasy</groupId>
            <artifactId>resteasy-netty</artifactId>
            <version>3.0.7.Final</version>
        </dependency>

        <dependency>
            <groupId>org.jboss.resteasy</groupId>
            <artifactId>resteasy-jdk-http</artifactId>
            <version>3.0.7.Final</version>
        </dependency>

        <dependency>
            <groupId>org.jboss.resteasy</groupId>
            <artifactId>resteasy-jackson-provider</artifactId>
            <version>3.0.7.Final</version>
        </dependency>

        <dependency>
            <groupId>org.jboss.resteasy</groupId>
            <artifactId>resteasy-jaxb-provider</artifactId>
            <version>3.0.7.Final</version>
        </dependency>

        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-core</artifactId>
            <version>8.0.11</version>
        </dependency>
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-logging-juli</artifactId>
            <version>8.0.11</version>
        </dependency>

        <dependency>
            <groupId>com.esotericsoftware.kryo</groupId>
            <artifactId>kryo</artifactId>
            <version>2.24.0</version>
        </dependency>
        <dependency>
            <groupId>de.javakaffee</groupId>
            <artifactId>kryo-serializers</artifactId>
            <version>0.26</version>
        </dependency>
        <dependency>
            <groupId>de.ruedigermoeller</groupId>
            <artifactId>fst</artifactId>
            <version>1.55</version>
        </dependency>
    </dependencies>
  <build>
    <plugins>
      <plugin>
        <artifactId>maven-compiler-plugin</artifactId>
        <configuration>
          <source>1.6</source>
          <target>1.6</target>
        </configuration>
      </plugin>
    </plugins>
  </build>
</project>
2、User.java

package com.hvgroup.user;

import java.io.Serializable;

import javax.validation.constraints.Min;
import javax.validation.constraints.NotNull;
import javax.validation.constraints.Size;
import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;
import org.codehaus.jackson.annotate.JsonProperty;

@XmlRootElement
@XmlAccessorType(XmlAccessType.FIELD)
public class User implements Serializable {

    @NotNull
    @Min(1L)
    private Long id;

    @JsonProperty("username")
    @XmlElement(name = "username")
    @NotNull
    @Size(min = 6, max = 50)
    private String name;

    public User() {
    }

    public User(Long id, String name) {
        this.id = id;
        this.name = name;
    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    @Override
    public String toString() {
        return "User (" +
                "id=" + id +
                ", name="" + name + """ +
                ")";
    }
}

3、UserService.java

package com.hvgroup.user;

public interface  UserService {
	   void registerUser(User user);
	   User getUser(Long id);
}


4、UserServiceImpl.java

package com.hvgroup.user;



public class UserServiceImpl implements UserService {

    public void registerUser(User user) {
        // save the user...
    }

    public User getUser(Long id) {
        return new User(id, "username" + id);
    }


}

5、UserServiceWebImpl.java

package com.hvgroup.user;

import com.alibaba.dubbo.rpc.RpcContext;
import com.hvgroup.user.User;
import com.hvgroup.user.UserService;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.ws.rs.Consumes;
import javax.ws.rs.GET;
import javax.ws.rs.POST;
import javax.ws.rs.Path;
import javax.ws.rs.PathParam;
import javax.ws.rs.Produces;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

@Path("users")
@Consumes({"application/json", "text/xml"})
@Produces({"application/json; charset=UTF-8", "text/xml; charset=UTF-8"})
public class UserServiceWebImpl implements UserService {

    private static final Logger logger = LoggerFactory.getLogger(UserServiceWebImpl.class);

    private UserService userService;

    public void setUserService(UserService userService) {
        this.userService = userService;
    }

    @GET
    @Path("{id : \d+}")
    public User getUser(@PathParam("id") Long id)
    {
      if (RpcContext.getContext().getRequest(HttpServletRequest.class) != null) {
        System.out.println("Client IP address from RpcContext: " + ((HttpServletRequest)RpcContext.getContext().getRequest(HttpServletRequest.class)).getRemoteAddr());
      }
      if (RpcContext.getContext().getResponse(HttpServletResponse.class) != null) {
        System.out.println("Response object from RpcContext: " + RpcContext.getContext().getResponse(HttpServletResponse.class));
      }
      return this.userService.getUser(id);
    }

    @POST
    @Path("register")
    public void registerUser(User user) {
    }
}

6、dubbo-demo-provider.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
	http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd">

    <dubbo:application name="dubboxtest" owner="programmer" organization="dubbox"/>
    <dubbo:registry address="zookeeper://192.168.89.135:2181"/>


    <!-- 用rest协议在8080端口暴露服务 -->
	<dubbo:protocol name="rest" port="8888" threads="500"  server="tomcat" accepts="500"
                    extension="com.alibaba.dubbo.demo.extension.TraceInterceptor,
                    com.alibaba.dubbo.demo.extension.TraceFilter,
                    com.alibaba.dubbo.demo.extension.ClientTraceFilter,
                    com.alibaba.dubbo.demo.extension.DynamicTraceBinding,
                    com.alibaba.dubbo.demo.extension.CustomExceptionMapper,
                    com.alibaba.dubbo.rpc.protocol.rest.support.LoggingFilter"/>
<!-- 	<dubbo:protocol name="rest" port="8888" contextpath="dbxtest" server="servlet" />  -->

	<!-- 声明需要暴露的服务接口 -->
	<dubbo:service interface="com.hvgroup.user.UserWebService" ref="userWebService" protocol="rest" validation="true"/>
	<!-- <dubbo:service interface="com.hvgroup.user.UserWebService" ref="userWebService"/> -->

	<!-- 和本地bean一样实现服务 -->
	<bean id="userService" class="com.hvgroup.user.UserServiceImpl" />


	<bean id="userWebService" class="com.hvgroup.user.UserServiceWebImpl">
        <property name="userService" ref="userService"/>
    </bean>
</beans>

7、log4j.xml

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE log4j:configuration SYSTEM "log4j.dtd">
<log4j:configuration xmlns:log4j="http://jakarta.apache.org/log4j/" debug="false">
	<appender name="CONSOLE" class="org.apache.log4j.ConsoleAppender">
		<layout class="org.apache.log4j.PatternLayout">
			<param name="ConversionPattern" value="[%d{dd/MM/yy hh:mm:ss:sss z}] %t %5p %c{2}: %m%n" />
		</layout>
	</appender>
	<root>
		<level value="INFO" />
		<appender-ref ref="CONSOLE" />
	</root>
</log4j:configuration>

8、web.xml

<?xml version="1.0"?>
<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>/WEB-INF/classes/dubbo-demo-provider.xml</param-value>
    </context-param>

    <listener>
        <listener-class>com.alibaba.dubbo.remoting.http.servlet.BootstrapListener</listener-class>
    </listener>

    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <servlet>
        <servlet-name>dispatcher</servlet-name>
        <servlet-class>com.alibaba.dubbo.remoting.http.servlet.DispatcherServlet</servlet-class>
        <load-on-startup>1</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>dispatcher</servlet-name>
        <url-pattern>/*</url-pattern>
    </servlet-mapping>
</web-app>

三、将新创建的项目部署到tomcat里面运行起来。

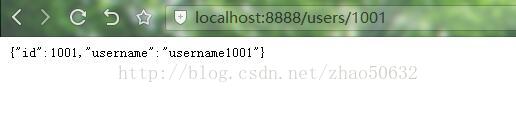

四、在浏览器上面 http://localhost:8888/users/1001




声明：该文观点仅代表作者本人，牛骨文系教育信息发布平台，牛骨文仅提供信息存储空间服务。
未上传头像

热门文章
CTF writeup 2_南邮网络攻防训...
SSM框架——详细整合教程（...
Linux Shell脚本编程－－curl命...
HttpClient使用详解
Java面试题全集（上）
JAVA设计模式之单例模式
java.lang.OutOfMemoryError: PermGen ...
TCP协议中的三次握手和四次...
form表单的两种提交方式，su...
String,StringBuffer与StringBuilder...
最新文章
Java之品优购课程讲义_day20（7）
剑指 Offer - 8：跳台阶
Netty权威指南_札记02_NIO编程
mysql时间属性之时间戳和datetime之...
虚拟现实或许可以拯救古埃及的“...
spring cloud服务注册中心eureka---集群...
Java SE 第六章
HTTP请求+数据库
HIDL学习笔记之HIDL C++（第二天）
ubuntu系统下指定tomcat运行时为JDK1.8...
copyright © 2008-2019 亿联网络 版权所有 备案号：粤ICP备14031511号-2
