HTML5 Canvas平移，放缩，旋转演示

HTML5 Canvas中提供了实现图形平移，旋转，放缩的API。

平移(translate)

平移坐标translate(x, y)意思是把(0,0)坐标平移到(x, y)，原来的(0,0)坐标则变成(-x, -y)

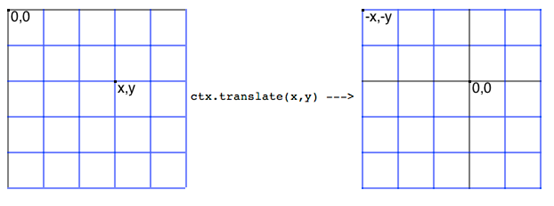

图示如下：

任何原来的坐标点p(ox, oy)在translate之后的坐标点为p(ox-x, oy-y),其中点(x, y)为平移

点坐标translate(x, y)。

代码演示：

// translate is move the startpoint to centera and back to top left corner

**function**renderText(width, height, context) {

   context.translate(width/ 2, height / 2);// 中心点坐标为(0, 0)

   context.font="18px Arial";

   context.fillStyle="blue";

   context.fillText("Please Press <Esc> to Exit Game",5,50);

   context.translate(-width/2,-height/2); // 平移恢复(0,0)坐标为左上角

   context.fillText("I"m Back to Top",5,50);

}

放缩(Scale)

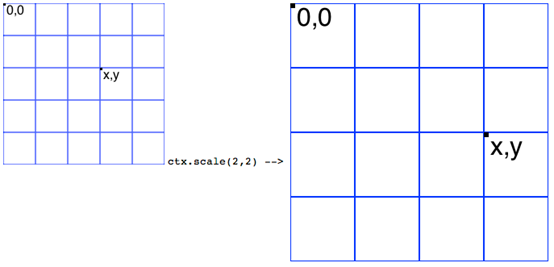

Scale(a, b)意思是将对象沿着XY轴分别放缩至ax,  by大小。效果如图示：

// translation the rectangle.

**function**drawPath(context) {

   context.translate(200,200);

   context.scale(2,2);// Scale twice size of original shape

   context.strokeStyle= "green";

   context.beginPath();

   context.moveTo(0,40);

   context.lineTo(80,40);

   context.lineTo(40,80);

   context.closePath();

   context.stroke();

}

旋转(rotate)

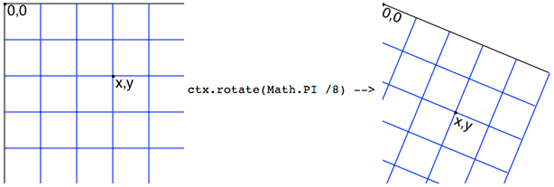

旋转角度rotate(Math.PI/8)

旋转前的坐标p(x, y)在对应的旋转后的坐标P(rx, ry)为

Rx = x cos(-angle)- y sin(-angle);

Ry = y cos(-angle) + x sin(-angle);

旋转90度可以简化为：

Rx = y;

Ry = -x;

Canvas中旋转默认的方向为顺时针方向。演示代码如下：

// new point.x = x * cos(-angle) -y * sin(-angle),

// new point.y = y * cos(-angle) +x * sin(-angle)

**function**renderRotateText(context) {

   context.font="24px Arial";

   context.fillStyle="red";

   context.fillText("i"m here!!!",5,50);



   // rotate -90 degreee

   // context.rotate(-Math.PI/2);

   // context.fillStyle="blue";

   // context.fillText("i"m here!!!", -400,30);



   // rotate 90 degreee

   context.rotate(Math.PI/2);

   context.fillStyle="blue";

   context.fillText("i"m here!!!",350,-420);



   console.log(Math.sin(Math.PI/2));



   // rotae 90 degree and draw 10 lines

   context.fillStyle="green";

   **for**(**var**i=0; i<4; i++) {

       **var**x = (i+1)*20;

       **var**y = (i+1)*60;

       **var**newX = y;

       **var**newY =-x;

       context.fillRect(newX,newY, 200, 6);

   }

}

通常做法是旋转与平移一起使用，先将坐标(0,0)平移到中心位置

translate (width/2, height/2)然后再使用rotate(Math.PI/2)完成旋转

代码示例如下：

**function**saveAndRestoreContext(context) {

   context.save();

   context.translate(200,200);

   context.rotate(Math.PI/2);

   context.fillStyle="black";

   context.fillText("2D Context Rotate And Translate", 10, 10);

   context.restore();

   context.fillText("2D Context Rotate And Translate", 10, 10);

}

全部JavaScript代码：

		var tempContext = null; // global variable 2d context
		window.onload = function() {
			var canvas = document.getElementById("target");
			canvas.width = 450;
			canvas.height = 450;

			if (!canvas.getContext) {
			    console.log("Canvas not supported. Please install a HTML5 compatible browser.");
			    return;
			}

			// get 2D context of canvas and draw image
			tempContext = canvas.getContext("2d");
			// renderText(canvas.width, canvas.height, tempContext);
			saveAndRestoreContext(tempContext);
			// drawPath(tempContext);
		}

		// translate is move the start point to centera and back to top left corner
		function renderText(width, height, context) {
			context.translate(width / 2, height / 2);
			context.font="18px Arial";
			context.fillStyle="blue";
			context.fillText("Please Press <Esc> to Exit Game",5,50);
			context.translate(-width / 2, -height / 2);
			context.fillText("I"m Back to Top",5,50);
		}

		// translation the rectangle.
		function drawPath(context) {
			context.translate(200, 200);
			context.scale(2,2); // Scale twice size of original shape
			context.strokeStyle = "green";
			context.beginPath();
			context.moveTo(0, 40);
			context.lineTo(80, 40);
			context.lineTo(40, 80);
			context.closePath();
			context.stroke();
		}

		// new point.x = x * cos(-angle) - y * sin(-angle),
		// new point.y = y * cos(-angle) + x * sin(-angle)
		function renderRotateText(context) {
			context.font="24px Arial";
			context.fillStyle="red";
			context.fillText("i"m here!!!",5,50);

			// rotate -90 degreee
			// context.rotate(-Math.PI/2);
			// context.fillStyle="blue";
			// context.fillText("i"m here!!!", -400,30);

			// rotate 90 degreee
			context.rotate(Math.PI/2);
			context.fillStyle="blue";
			context.fillText("i"m here!!!", 350,-420);

			console.log(Math.sin(Math.PI/2));

			// rotae 90 degree and draw 10 lines
			context.fillStyle="green";
			for(var i=0; i<4; i++) {
				var x = (i+1)*20;
				var y = (i+1)*60;
				var newX = y;
				var newY = -x;
				context.fillRect(newX, newY, 200, 6);
			}
		}

		function saveAndRestoreContext(context) {
			context.save();
			context.translate(200,200);
			context.rotate(Math.PI/2);
			context.fillStyle="black";
			context.fillText("2D Context Rotate And Translate", 10, 10);
			context.restore();
			context.fillText("2D Context Rotate And Translate", 10, 10);
		}
